PCB Design Pro has over 20 years of experience in PCB layout and electro-mechanical design. From concept to prototype we provide innovative solutions for all phases of the development process.
Services offered but not limited to:
- circuit design
- component selection
- schematic entry
- custom land patterns

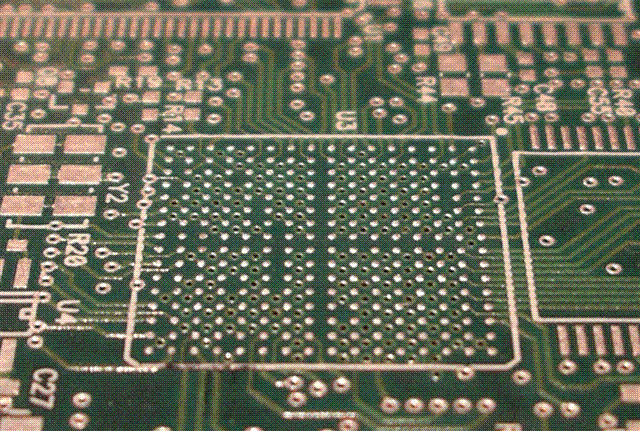

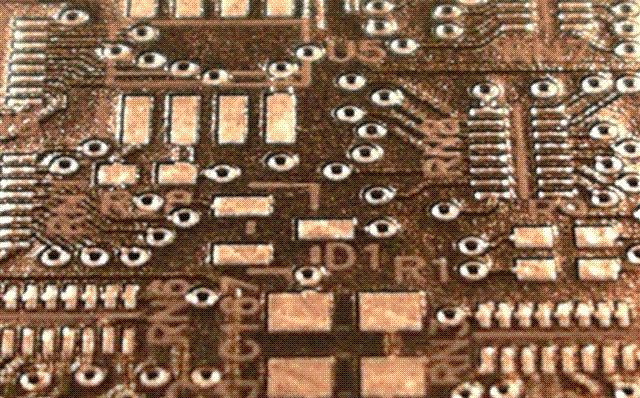

- PCB layout including fine pitch BGAs, controlled impedance, high current, high voltage and high layer count
- gerber editing & conversion
- outsource PCB fabrication
- prototype assembly & testing
- 2D assembly & dimensional drawings
- 3D solid models & isometric assembly drawings
- manual review of gerber files for manufacturing
- product redesign
- reverse engineering
- problem solving
